What is blister packaging machine for condoms?

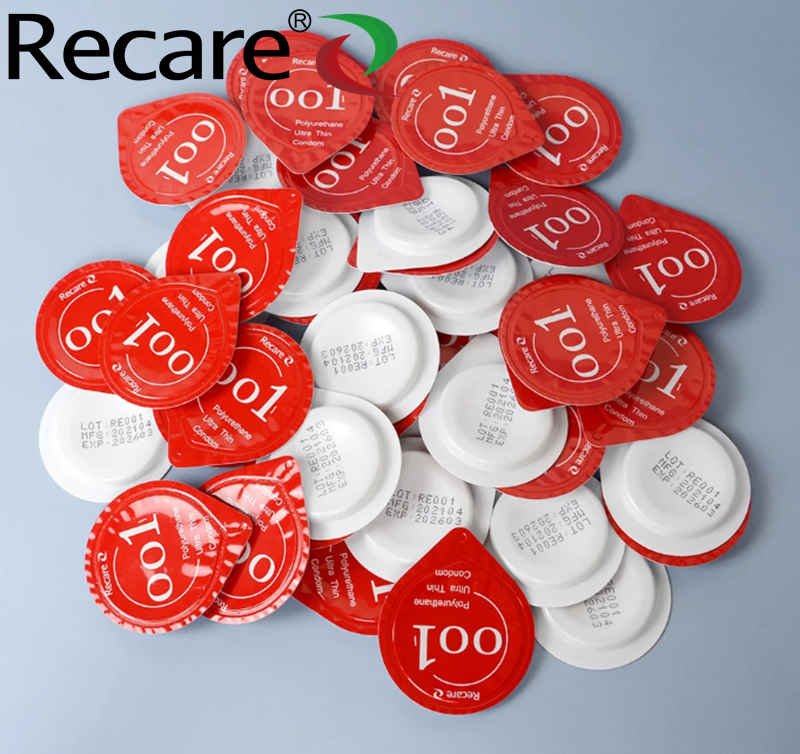

This blister packaging machine for condoms uses thermoforming technology to heat and soften plastic sheets (such as PP,PVC,PET), and then uses molds to punch them into a blister shape. Condom is then placed inside the blister, covered with aluminum foil and sealed to form an independent packaging unit.

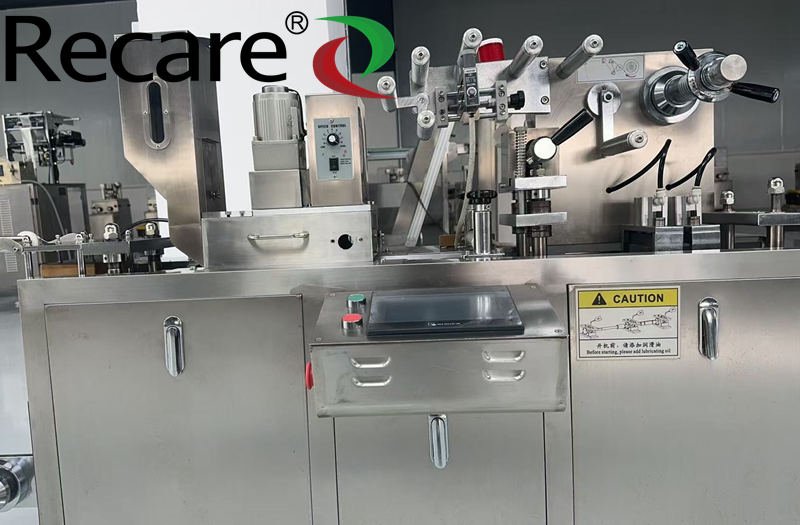

The features of our blister sealing machine
- All molding, heat sealing, batch marking, indentation, punching and other devices are positioned using a toothed spindle.Shaking the handle allows various devices to move easily and freely on the spindle. The machine is equipped with a ruler for easy calibration and quick and accurate positioning.
- Servo traction adopts a dual pendulum device, which increases the adjustable range of traction stroke (up to 80mm) and can adapt to packaging of various sizes of medicine plates.
- The machine is capable of plate heating, positive pressure forming, upper and lower mesh forming, cylinder heat sealing, automatic feeding, automatic indentation and batch marking, and automatic punching of plates, with simple operation and reliable performance.
- Positive pressure air forming combined with mechanical punch (optional) ensures uniform and firm bubble forming, suitable for packaging large-sized or special shaped objects.
- The main transmission part adopts a parallel axis helical gear reducer, and the molds for molding, heat sealing, indentation, etc. are positioned with small nails. The pressure plate is fixed tightly, the positioning is accurate, the mold replacement is convenient, and the packaging material is saved.
- Recommended spare parts for one year
Technical Specification：
| 40-50pcs/minute; （max 24,000pcs/8 hours; max 72,000pcs/24 hours） |
| Production capacity 1980 edition/hour (calculated according to standard layout size) |
| Maximum molding area and depth 105×70 (standard depth ≤ 15) (mm) Maximum depth 25mm (customized) |
| Standard travel range of 30-80 millimeters (can be designed according to customer requirements) |
| Standard section 8057mm (can be designed according to customer requirements) |
| Air pressure 0.4-0.6Pma |
| Air consumption (compressor) ≥ 0.3m3/min |
| Total power supply 220V 50Hz 2.4Kw |
| Main motor power 0.75Kw |
| PVC hard sheet 0.15-0.5110mm (mm) |
| PTP aluminum foil 0.02-0.035110 millimeters (mm) |
| Dialysis paper 50-100g, 110mm |
| Mold cooling :tap water or circulating water |
| Dimensions 1840x590x1100 (mm) (LxWxH) |
| Weight: Net weight 415 kg Gross weight 465 kg |
| Noise index<75dBA |
