Condom blister packing machine uses thermoforming technology. It heats plastic sheets (like PET, PVC) to make them soft. After that, molds are used to stamp the softened sheets into a blister form. Next, a condom is put inside this blister, and then aluminum foil is placed on top and sealed, thus creating an independent packaging unit.
Technical Specification：
| Punching frequency (times/minute)： | 6-50 times/minute |
| Production capacity (10000 pieces/hour)： | 3.5-23 (subject to layout) |
| Maximum molding area and depth (in millimeters) | 240 × 170 × 26 (standard is 240 × 150 × 14) |
| Travel range (millimeters) | 40-160 (can be increased to 180mm according to user requirements) |
| Standard section (millimeters) | 80 × 57 (can be designed according to user requirements) |
| Air pressure (megapascals) | 0.4 – 0.6 |
| Air flow | ≥0.3m3/min |
| Total power of the power supply | 380V/220V 50Hz 6.2kw |
| Main motor power (kW) | 1.5 |
| PVC hard sheet (mm) | 0.15 – 0.5×250 |
| PTP aluminum foil (mm) | 0.02 – 0.035×250 |
| Dialysis paper (mm) | 50 – 100g×250 |
| Dimensions (millimeters) | 2750*950*1800mm |
| Outer packaging size | 3100*1150*2300mm |
| Whole machine weight (kg) | 1400 |
| Mold cooling | TAP WATER OR RECYCLING WATER |
| Dimensions (millimeters) | 3000×730×1600 (L×W×H) |
Advantages of Recare blister packaging machine

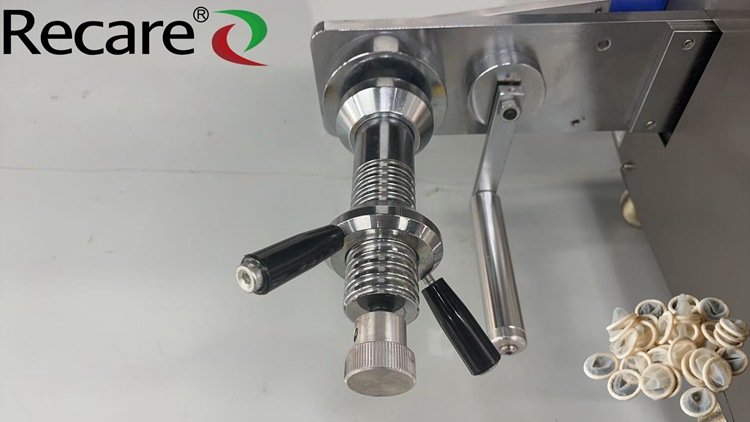

All molding, heat sealing, batch marking, indentation, punching and other devices are positioned using a toothed spindle.Shaking the handle allows various devices to move easily and freely on the spindle. The machine is equipped with a ruler for easy calibration and quick and accurate positioning.
Servo traction adopts a dual pendulum device, which increases the adjustable range of traction stroke (up to 80mm) and can adapt to packaging of various sizes of medicine plates.The machine is capable of plate heating, positive pressure forming, upper and lower mesh forming, cylinder heat sealing, automatic feeding, automatic indentation and batch marking, and automatic punching of plates, with simple operation and reliable
performance.
Positive pressure air forming combined with mechanical punch (optional) ensures uniform and firm bubble forming, suitable for packaging large-sized or special shaped objects.

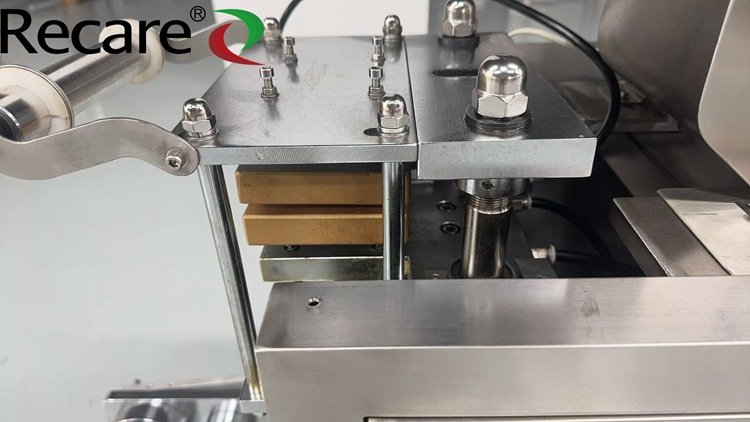

The main transmission part adopts a parallel axis helical gear reducer, and the molds for molding, heat sealing, indentation, etc. are positioned with small nails. The pressure plate is fixed tightly, the positioning is accurate, the mold replacement is convenient, and the packaging material is saved.
For the convenience of entering the workshop, the machine body can be made into separate parts according to user requirementsFor the convenience of entering the workshop, the machine body can be made into separate parts according to user requirements
