Condom burst volume and pressure tester is a professional equipment used to test the anti explosion performance of condoms. It mainly fills the inside of the condom with gas (usually air or inert gas) and gradually increases the internal pressure until the condom bursts, in order to determine the key indicators such as the maximum burst pressure and burst volume that it can withstand, and evaluate the physical strength and quality reliability of the condom
1.Technical parameters
(1).Working conditions: Power: 220V 50Hz AC;
2.Technical Specification of Condom burst volume and pressure tester
2.1 Functions
- 2.1.1 Used to detect the volume and pressure required for a condom to inflate until it bursts.
- 2.1.2 Capable of providing data in accordance with the GB7544 – 2004 standard
- 2.1.3 The entire process is fully automatically controlled by a computer. It can automatically display and record the volume and pressure when the condom bursts in real – time. Meanwhile, it can automatically analyze and record condom – related information (such as maximum value, minimum value, average value, number of qualified products, number of unqualified products, etc.), and supports user – initiated upgrades.
- 2.1.4 The door of the blasting main unit and the condom fixing device are automatically controlled to open and close by the computer, which reduces the workload of laboratory technicians and improves work efficiency.
2.2 Technical Parameters
- 2.2.1 Technical Parameters of Pressure Sensor
- Pressure Load: 160KPa
- Measured Pressure: 0 – 5KPa
- Allowable Error: ±0.05KPa
- 2.2.2 Technical Parameters of Flowmeter
- Measurement Range: Adjustable from 24 – 30dm/min (0.4 – 0.5 l/s)
- Flow Measurement Accuracy: ≤1.5%
- Volume Measurement Accuracy: ≤3.0%
- 2.2.3 Automatic Locking and Clamping Device: Meets the requirements of GB 7544 – 2004/ISO4074. It locks automatically, is air – tight, and the computer – controlled automatic lifting and lowering is available.
- 2.2.4 Temperature – Influence Error: Less than ±1.0% within the temperature range of 0 – 50℃.
3.Equipment standard configuration

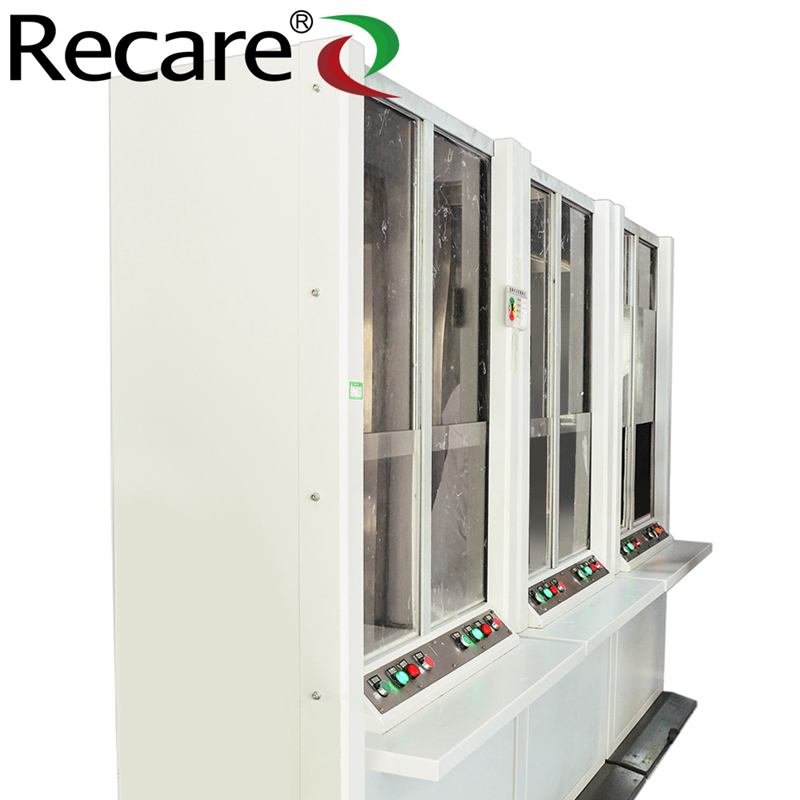

3.1 Two groups of main cabinets (4 blasting heads)
3.2 Automatic control device for the blasting box door: 4 sets
3.3 High-precision pressure sensors: 4 units
3.4 Gas flowmeters: 4 units
3.5 Flow regulators: 4 units
3.6 Pressure regulators with filters: 4 sets

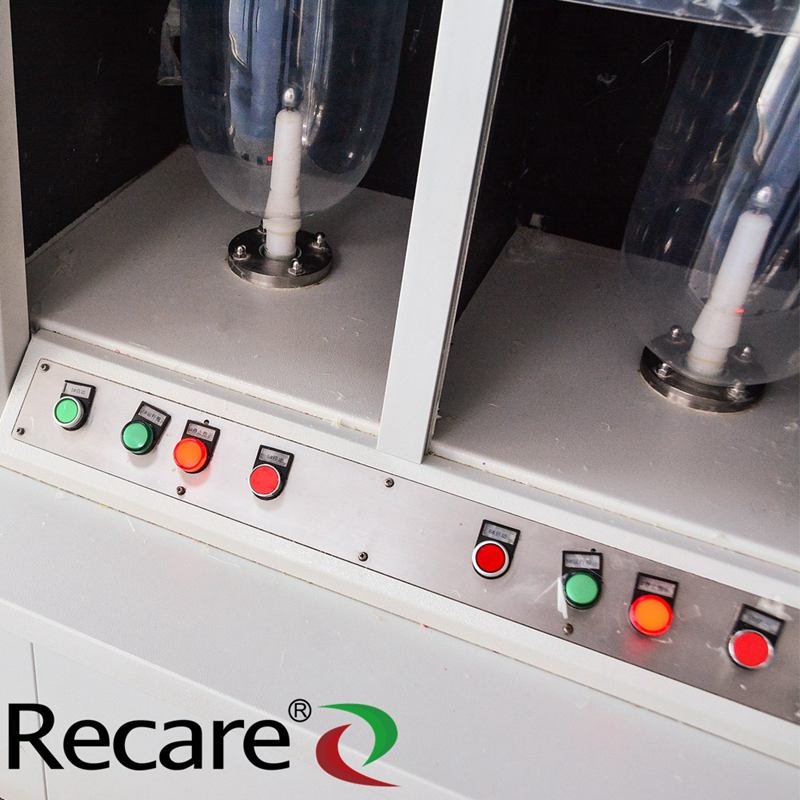

3.7 Columnar mandrel support devices with automatic locking: 4 sets
3.8 Automatic opening and closing cabinet doors: 4 sets
3.9 One set of detection computer (equipped with detection and control device inside).
