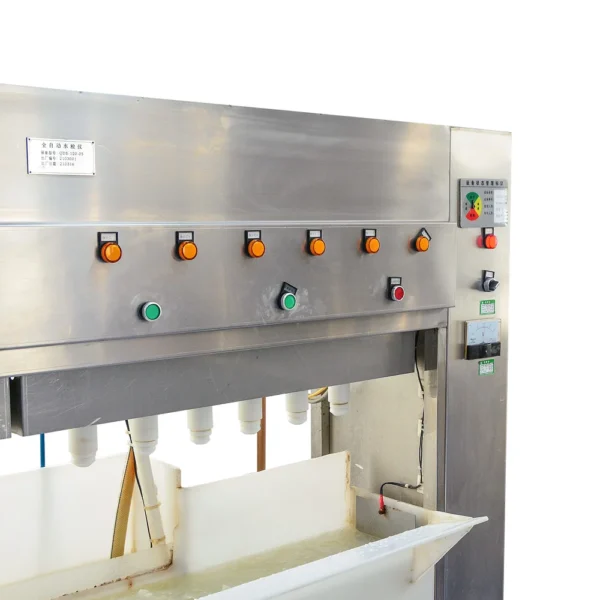

1. PLC control, variable frequency speed regulation, and electrical components are all from internationally renowned brands.
2. By adopting a human-machine interface operating system and a continuous testing system, the production efficiency of product performance has been improved.
3. Smooth testing and easy operation
| Feature | Value |
| Testing Stations | 10 pieces |
| Test Speed | 1.5 minutes/time |
| Test Time | 5 seconds/time |
| Water Injection Time | 30 seconds/time |
| Test Scope | Detect all types of condoms |
| Testing Environment | Saltwater |
| Water Injection Volume | 300 ml |
| Clean Compressed Air Pressure | 0.7 MPa |
| Gas Consumption | 700-900 L/min |
| Test Voltage | 200 mV |
| Power Supply | 380V 50Hz (customizable) |
| Main Motor Power | 2.2 kW |
| Test Water Temperature | 0-40°C |
| Injection Volume | 300 ml + 10 ml (Automatic water injection) |
| DC Voltage | Test voltage 10V, control voltage 24V |
| Voltage Meter Accuracy | ±0.3 mV |
| Precision Resistor | (10 ± 0.5) kΩ |
| Machine Size (L x W x H) | 1000 mm x 450 mm x 1600 mm |
| Weight | 50 kg |
1. Compliant with GB7544-2019 ISO4074: 2002 (Technical Requirements and Testing Methods for Natural Latex Condoms), ISO4074-2015, AFNOR (French Association for Standardization), DIN (German Institute for Standardization), and other certification requirements for pinhole testing. Check for pinholes in the condom and run all 10 stations together.
2. Manual condom can automatically add water, automatically lift the condom to add water, add 300ml of water, and lower the water for 5 seconds for detection. If the yellow light is on, it indicates a pinhole, and if the green light is on, there is no pinhole.
3. It can operate continuously at a maximum speed of 1.5 minutes per time, running in a saltwater environment. The water can be recycled and automatically filtered. The water tank is made of 316 material, which has strong corrosion resistance.
4. A high-tech product with high detection efficiency, stability, easy operation, and integrated operation.
5. It can automatically complete the detection, using frequency conversion speed regulation, human-machine interface PLC control, and photoelectric monitoring. If there is a fault in each operation, it can automatically stop and display the cause for timely troubleshooting.
