Condom Inflation Pressure Volume Testing Machine

Product Introduction

The burst volume and pressure tester for condoms is based on the international standard GB7544-2019/ISO4074/ISO23409/ASTM D6342.
Design and manufacture, mainly suitable for measuring the bursting capacity and bursting pressure volume of various condoms.

Professionalism:

Compatible with positive pressure design principles, easy to operate, stable and reliable performance.
The test range is optional, with a wide testing range and a wide range of applications.
Inflatable shaft clamping has high economic efficiency, convenience, and speed.
Explosive inflation volume and pressure measurement, with adjustable instantaneous inflation flow rate.
The experimental process is “one click” operation, intelligent, and has high testing efficiency.
High definition large screen LCD display of test data, automatic statistics and printing of results, support for test attachments, flexible test modes, and compatibility with diversity.

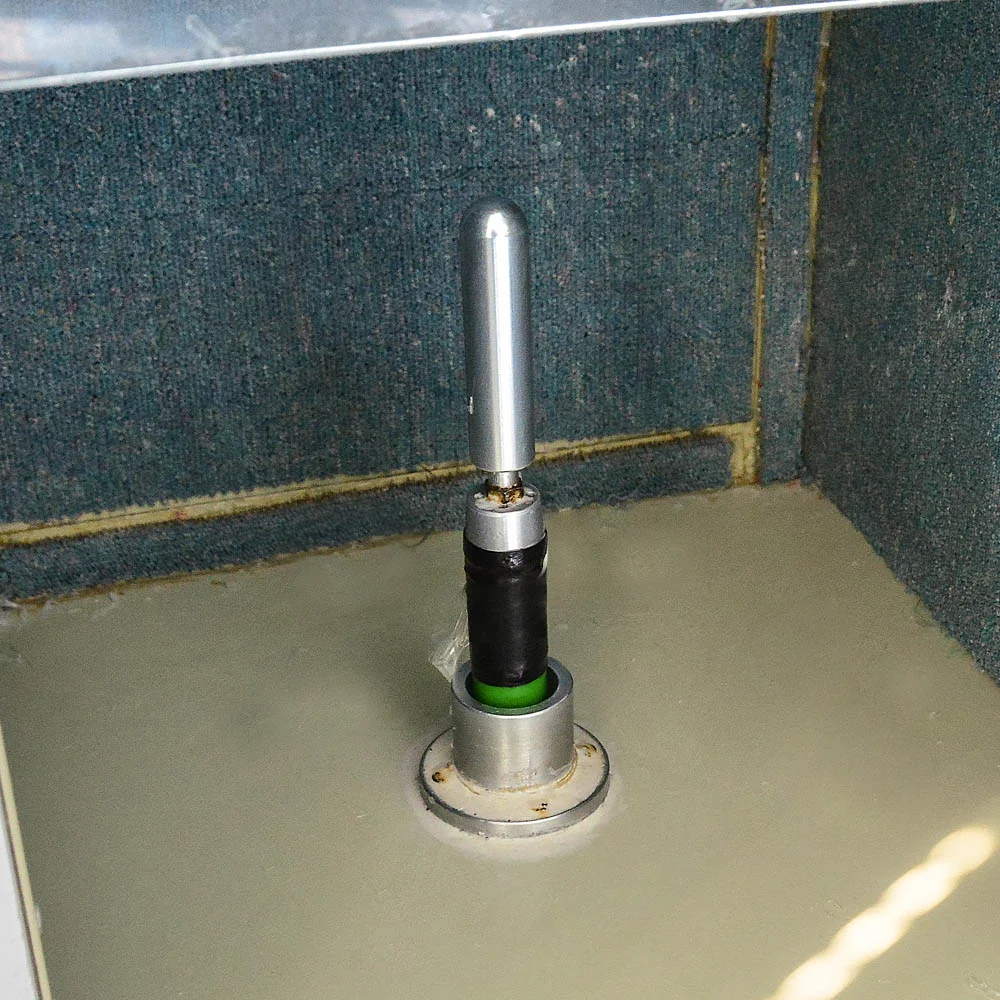

Test principle: Place the condom on the blowing rod and secure it to the fixing device. Inflate the condom at a rate of (0.4-0.5)/s or (24-30)/min until it bursts, and the screen automatically records the burst pressure and inflation volume; If the condom does not leak, measure and record the burst volume and pressure. The blasting volume is expressed in cubic decimeters and rounded to 0.5; The blasting pressure is expressed in kilopascals and rounded to 0.05kPa.

1. Compatible with multiple standards including GB7544, ASTM, and ISO
2. The host system can support connecting multiple sub machines for simultaneous testing
3. Equipped with automatic inflation shaft clamping for high efficiency, it does not damage the sample and easily completes testing
4. Professional measurement and control software provides real-time statistics of blasting flow rate, volume, and pressure data
5. Positive pressure design principle, simple operation, stable and reliable performance
6. One click operation of the experimental process, efficient and intelligent.
7. High definition LCD display, automatic result statistics, and printing
8. Support for testing attachments, flexible testing modes, and compatibility with diversity
Not only can it automatically display and record the volume and pressure values when the condom bursts, but it can also automatically analyze the information of unqualified products
10. One computer can simultaneously control at least two condom blasters
11. Operators can independently add or edit testing standards
12. It can be operated offline, automatically collecting data, recording pressure values, volume values, and other data during blasting tests, and can also provide reports
