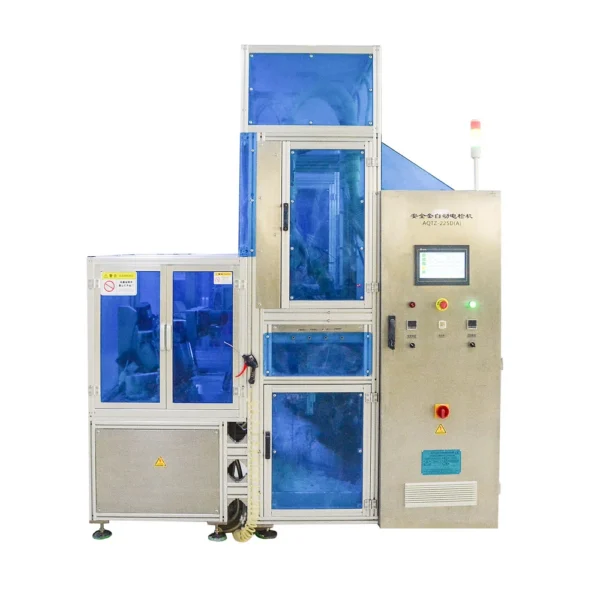

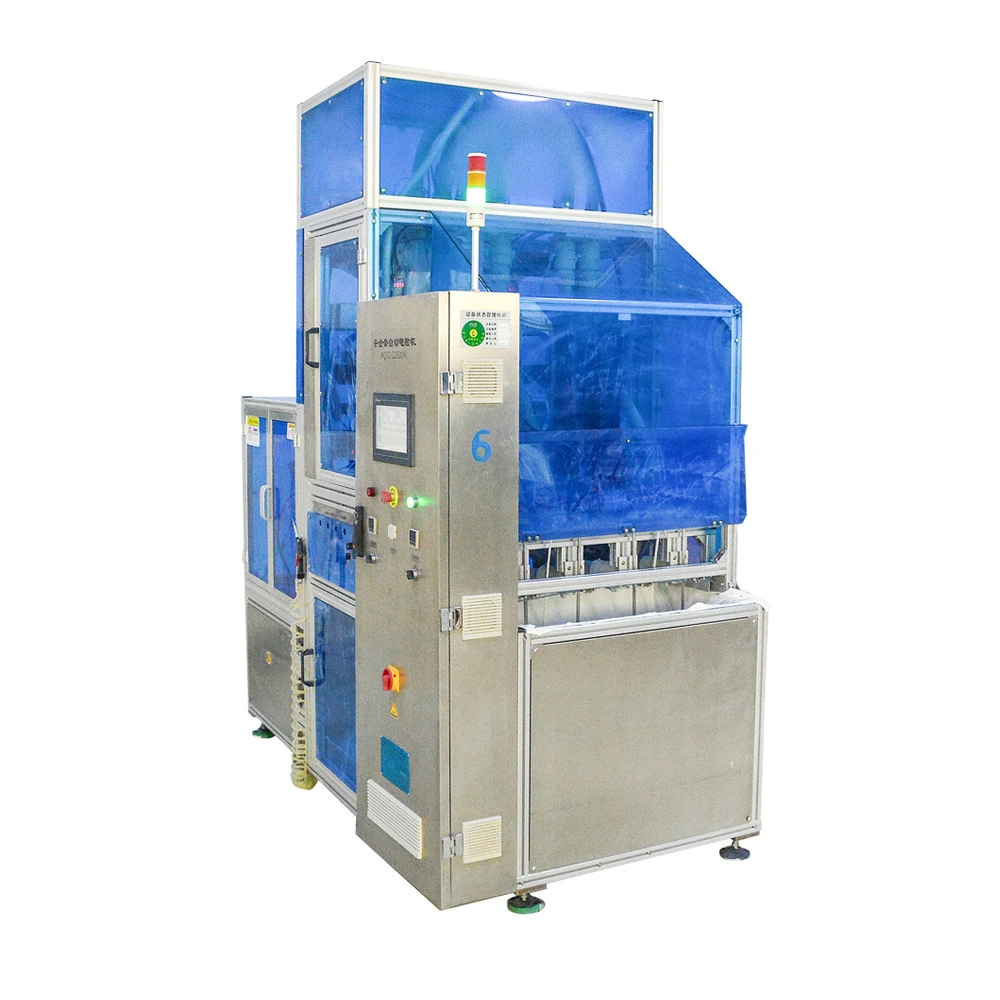

This product is suitable for electrical inspection of various smooth surface condoms, and also has electrical inspection functions for condoms such as particles and threads.
1. Product parameters and specifications
Production speed: affected by quality, fit, moisture, and edge shape.
Smooth surface cover (004-006) ≥ 27 pieces/minute,
Threads and particle sleeves ≥ 20 per minute.
2. Authenticity rate: ≥ 99.7%, false detection rate ≤ 0.3%.
3. Working pressure: ≥ 0.6mpa (dry gas source), gas consumption 0.52 cubic meters per minute.
4. Voltage: 380V/3-phase, three-phase five wire, 50/60HZ.
5. Total power of the power supply: 3.8KW, current of 18A.
6. Machine dimensions: length 2100mm, width 1200mm, height 2500mm. Machine weight: approximately 1000KG.
This product is suitable for electrical inspection of various smooth surface condoms, and also has electrical inspection functions for condoms such as particles and threads.
Fast production speed, only feeding is needed for normal production, and each operator can simultaneously operate 5 devices; Excellent detection rat.
The whole machine is enclosed by an aluminum alloy protective cover, effectively isolating dust and protecting the cleanliness of the purification production workshop; Integrating machinery, electricity, and gas, it adopts multiple imported servo drives, PLC control, synchronous operation, low noise, novel design, superior performance, and easy operation and maintenance.
©China Tianjin Recare Co., Ltd.
Recare has designed, manufactured, and installed condom production lines in various regions.
