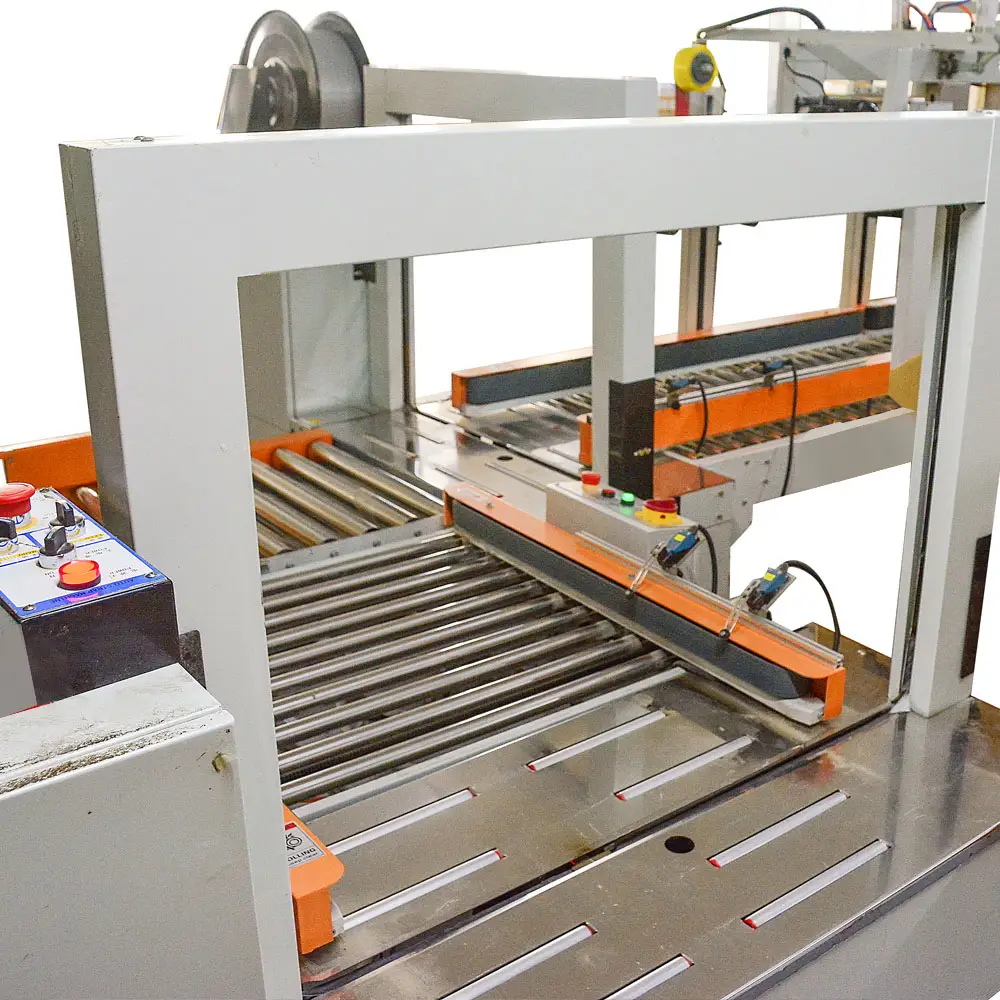

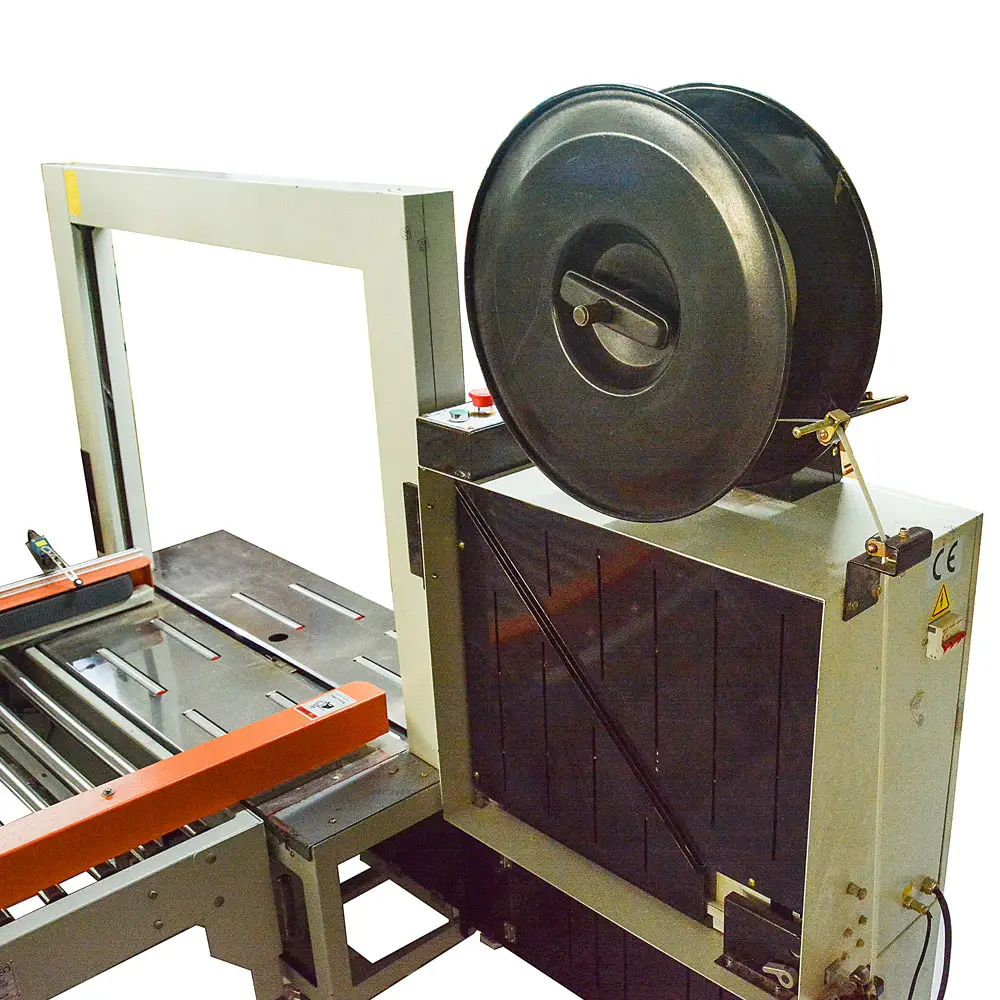

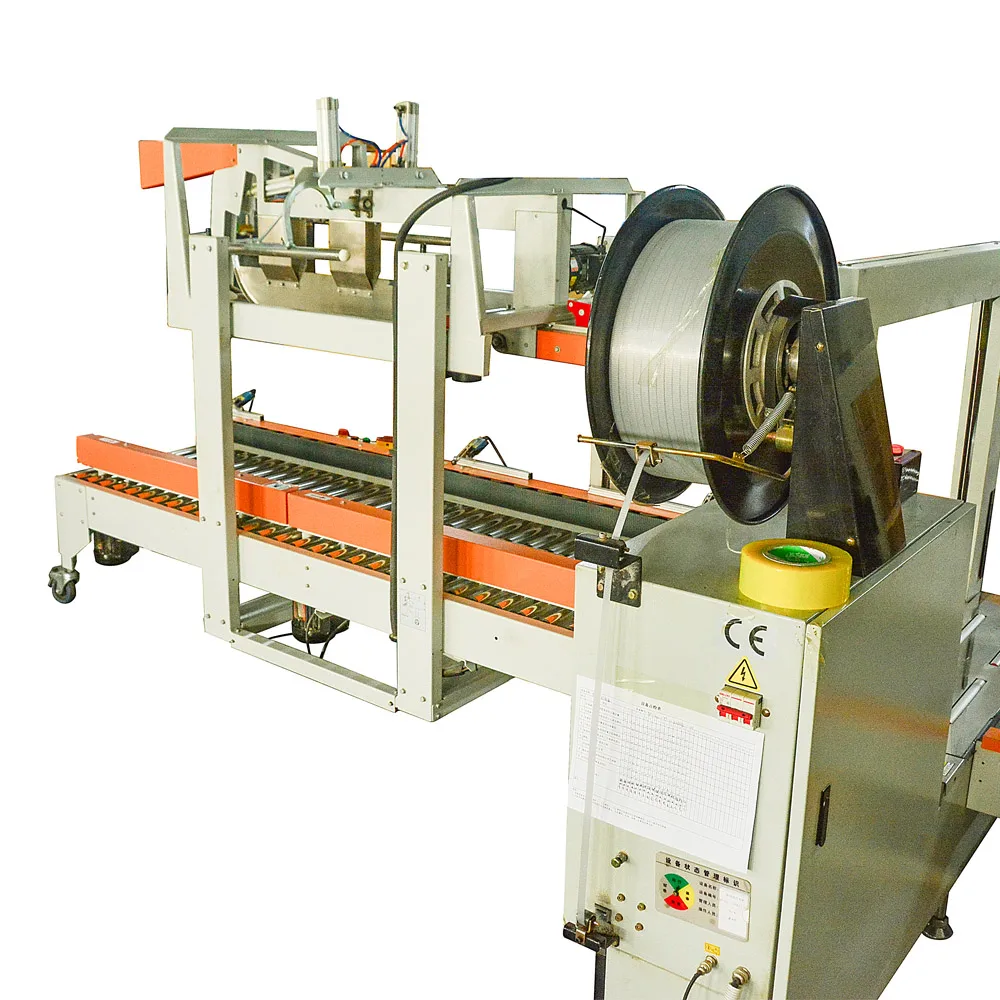

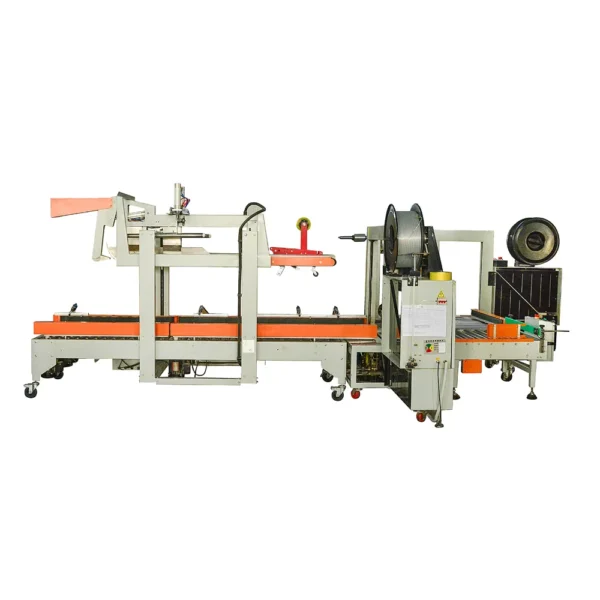

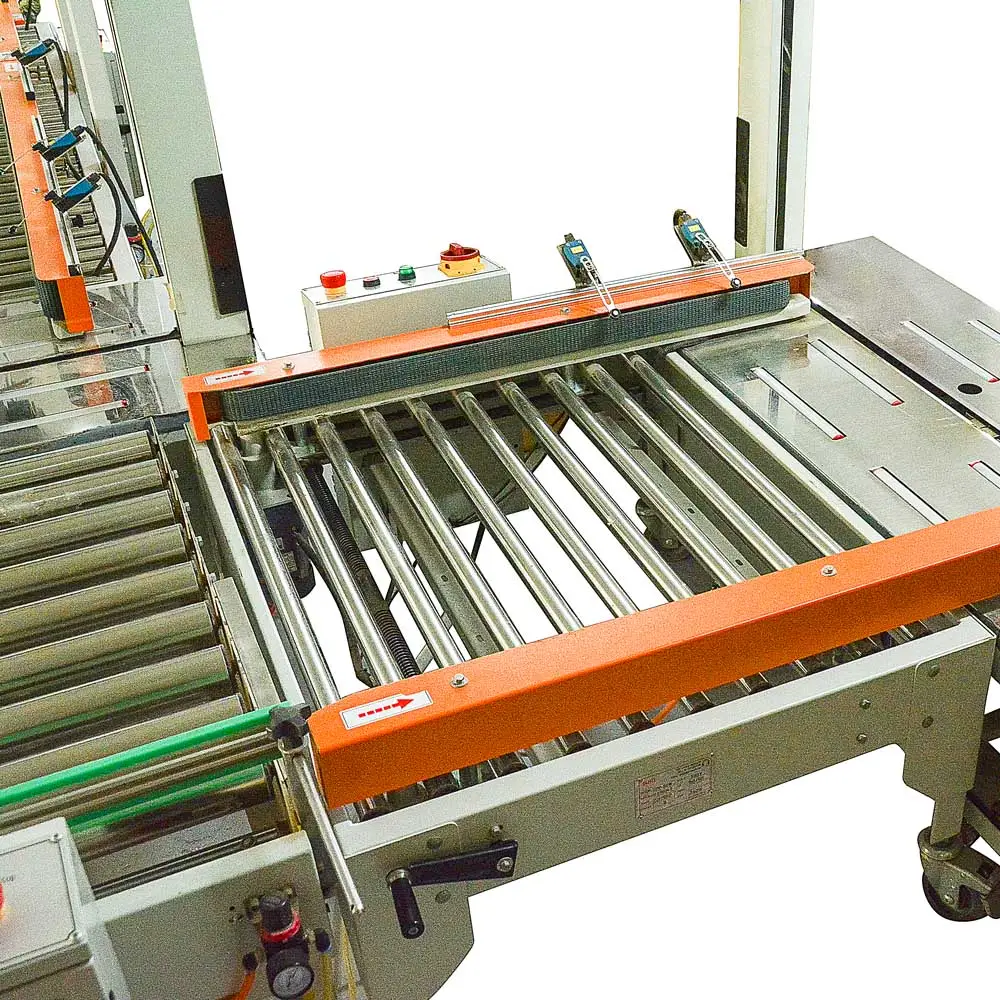

Strapping Machine (Fully automatic) is the low type. This is one machine connected with conveyor line and no manualreauired. This machine is controlled by PLC, conveving and strapping continuously working by the sensors, also can workingwith other automatic eauipments devices to realize the unmanned fully auto production lines
| Table height | 450mm |
| Speed | ≤2.5sec/cycle *Control system: PLC |
| Arch size | W800*H700mm (custom) |
| Tension | Max.120Kg |
| Strap size | width 9-15mm |
| Thickness | 0.55-1.2mm |
| Max.loading | 50Kg |
| Voltage | 380V/50HZ/3p |
| Machine size | L1900*W630*H1760mm |
| Machine weight | 300Kg |
PLC control,can work with other lines.
Auto detect,auto convey,auto strapping without man
PLC reserved the vacant point which can connect with other equipments
Imported electrical,stable performance
Can customized
