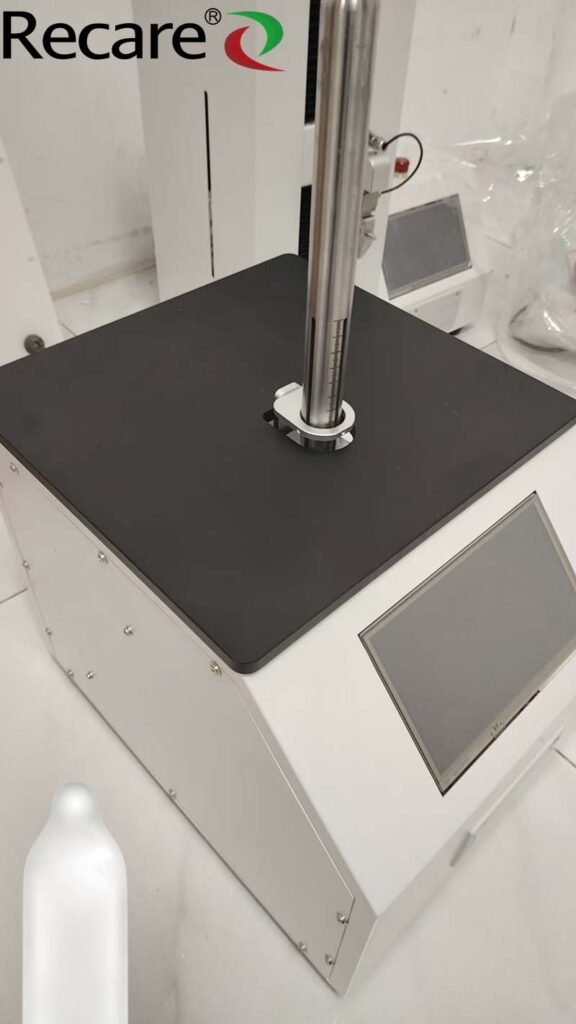

Proudly launches the Recare Professional Condom Length Tester, which integrates the most reliable industrial touch screen, high-performance PLC control, industrial software, integrated circuits, motion control and high-precision sensing technologies. Through the dedicated collaboration of all our experts, engineers and technical workers, we ensure that the condom electronic measuring device we provide to you features excellent quality, as well as stable and durable performance. Machine operation video！
This Condom Length Tester is specially designed for the length measurement of condoms. It complies with GB7544-2019 Technical Requirements and Test Methods for Natural Latex Rubber Condoms and the international standard ISO4074:2002, and is applicable for the length measurement of condoms.
Technical Features
- Automatically detect dimensions, calculate the maximum, minimum and average values, and judge qualification automatically.
- The product supports three-level user authority in line with GMP requirements.
- Capable of statistical analysis of test results for single and grouped samples.
- Equipped with ISP online control and upgrade functions, allowing remote modification of test functions as required.
- Adopts ultra-high precision sensors.
- Built-in micro printer for on-demand printing of test statistical results.
- Special computer communication software for real-time display of tests, as well as data analysis, processing and storage.
- Operators can independently add or edit test standards.
- The Condom Length Tester supports offline operation and automatic data collection.
Technical Parameters
| Length range | 0-225mm |
| Resolution | 0.01mm |
| Weight | 15Kg |
| Condom Length Tester dimensions | length 350mm, width 300mm, height 500mm |
| Measuring shaft | height 250mm, diameter 25mm |
Product Configuration
Main unit, Micro printer
Notes of condom electronic measuring device
- Do not use in high-humidity working environments.
- Do not use in working environments with strong corrosive gas, flammable or explosive substances.
- Do not use in working environments with severe vibration and strong electromagnetic interference.
- Power supply: 220V-50HZ with reliable earthing.
- Turn off the power after the test is completed.
Reminder: For your operational safety, the service life and precision of the Condom Length Tester, as well as the validity of test data, please strictly abide by the above notes.
Equipment Operation Precautions
Read the operation manual carefully and be fully familiar with the operation process.
Perform regular maintenance to keep the equipment clean, and cover it with a dust cloth when not in use.
In case of equipment failure, contact our after-sales staff in a timely manner and troubleshoot under their guidance.
Do not disassemble the equipment without authorization. Cut off the power supply during maintenance and never operate the equipment with power on.
FAQ：
Q1.If the edge of the condom is uneven, can it still be tested?
A:Regarding samples with wrinkles
- When extracting samples, try not to use wrinkled samples for testing.
- If our device has such wrinkles, a slight upward triggering force of our machine will also have a certain degree of flattening on it.
Q2. What is the interval time for accuracy verification?
The accuracy verification interval shall be executed in accordance with relevant specifications. (We suggest that you conduct a verification once every six months or a year)
Q3.Damage and replacement of sensors?
A:The displacement sensor of this Condom Length Tester can be replaced and only the type of sensor specified by the manufacturer can be replaced. The sensor is in a one-to-one correspondence with the control board of this machine, and the sensor cannot be interchanged with other sensors of the same type. Each sensor has a corresponding set of calibration data in the control board. Changing the sensor at will will will cause measurement data to be inaccurate, so please use the sensor that is standard equipped by the manufacturer or calibrate the new sensor before use.
Q4. Do you provide operation manuals and video tutorials?
A: Yes, we can provide customers with operation manuals and instructional videos in the local language.
Q5. Could workers go abroad for on-site installation, debugging, and training?
A: Our technical staff are available for overseas business trips to provide on-site installation, debugging and training services. The customer shall bear the round-trip transportation and accommodation expenses of our staff.
Q6. How long is the warranty period?
A: The warranty period is one year (12 months), which is subject to the warranty terms of the accessory components used in the equipment.
Q7. Is there a discount for large quantity?
A: A 10% discount is available for orders of 5 machines or more.
Q8. What is the payment method?
A: T/T payment:30% deposit in advance, and the 70% balance against the copy of Bill of Lading (B/L).
Q9. How long is the production cycle?
A: For small quantity orders, delivery can be made within 15-20 working days; for large quantity orders, delivery can be made within 30-45 working days.
