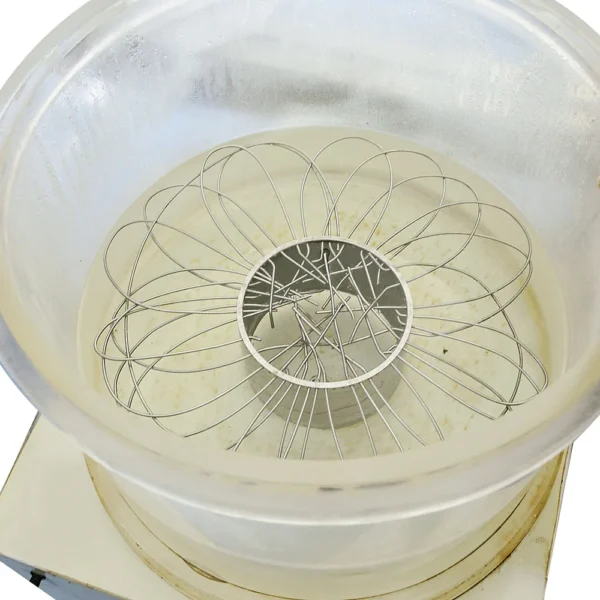

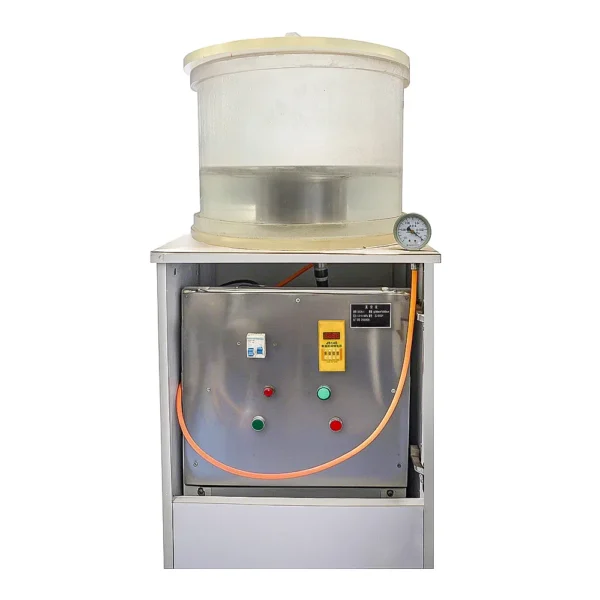

The packaging integrity tester is specialized in conducting sealing tests on products. Through testing, it can effectively compare and evaluate the sealing process and performance of flexible packaging.
| Vacuum degree | 0~-95kPa |
| Accuracy | level 1 |

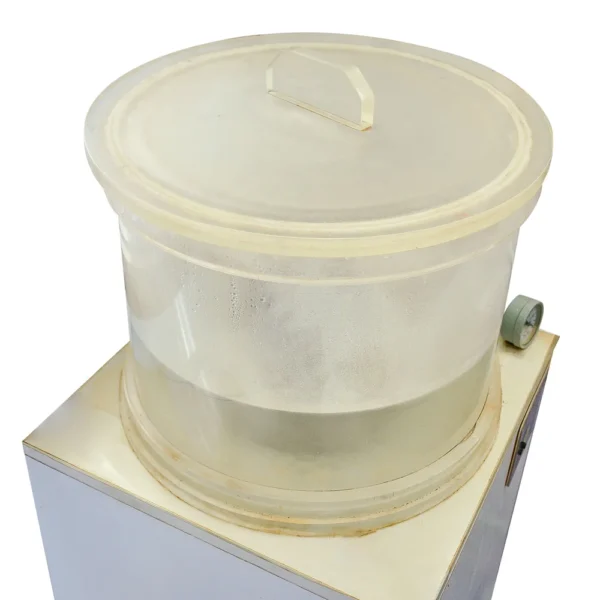

| Vacuum chamber size | Φ 270mm × 210mm (H) |
| Gas source pressure | 0.7MPa (The air source interface of this machine is a Φ 6mm polyurethane pipe; Built in air source unit, no need for external air source) |
| Power supply | 220 V/50Hz |
| Size of machine | 300mm (L) × 380mm (B) × 450mm (H) |
| Weight | 15kg |
| Host and test tank (the air source interface of this machine is a Φ 6mm polyurethane pipe; the built-in air source unit does not require an external air source) | |
1. Adopting a built-in air source unit, no external air source is required, plug in and use immediately;
2. The system adopts microcomputer control, with fully automated operations for pumping, holding, replenishing, timing, backblowing, and printing;

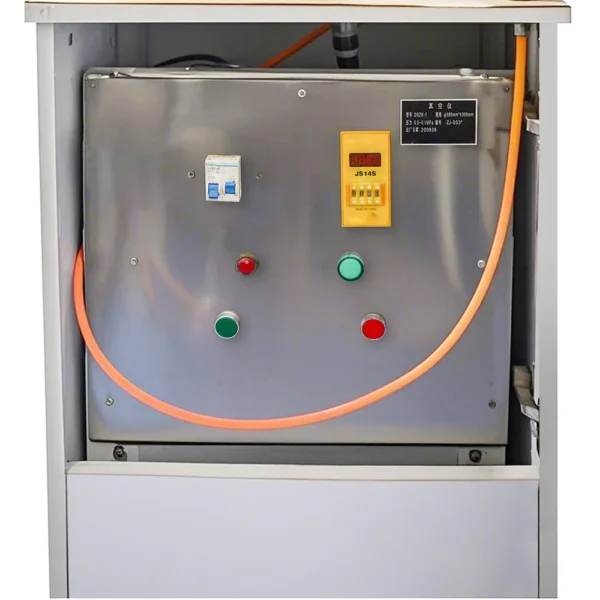

3. The device is equipped with a LCD display screen and comes with a micro printer. It supports data preset and power-off memory to ensure the accuracy of test data;
4. The system reserves a USB interface that can print and output test data to meet different customer needs.
